SVT Test Stand Software

To run the SVT teststand software, you need the following packages :

• Histoscope 3.1.1 or Histoscope 4.0. (Version 4.0 works with Linux)
• Tcl 7.4 and Tk 4.0
• gmake
• gcc

---

Some RPC information

---

(7 April 1998)

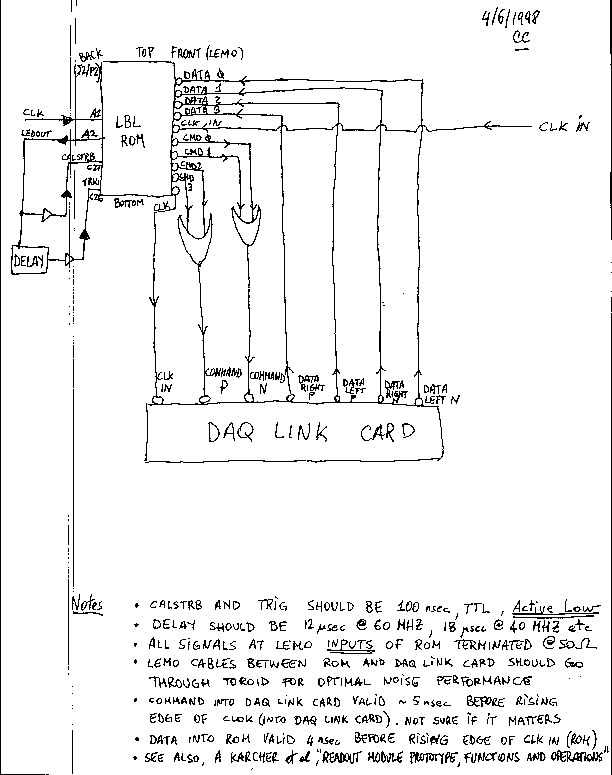

Hints on how to connect the LBL ROM to the UCSC DAQ link card, including external logic for charge injection.

---

(10 June 1998 )

Version 1.11 of the SVT Test Stand Software (cwish) is now available (tar.gz). Make sure to read the README file.

---

(10 April 1998)

Here is a tar.gz file which contains kumacs to analyze threshold scans.

---

(13 August 1998)

Here is a tar.gz file which contains a number of utility programs that you may find useful:

• getrun, a Tcl script to read the parameters for a calibration run that you have performed, and ouput them in a human-readable form



• dumpev, a program to do a formatted dump of events to the screen or to a file



• svtana, a program to read a data file and output a PAW column-wise-ntuple with all of the useful information



• quickfit, a fast program to fit threshold histograms without using PAW.



• CreateHbFile, a program to read a data file and output HBOOK histograms identical to those generated online through HistoScope.

Take a look at the README file in the distribution for installation and usage instructions.

---
